Quick Fix 3x3 Pop Up Display Stand
Quick Summary
See MoreThe Quick Fix pop up stand is a great quality stand at an affordable price. Magnetically-locking frame takes minutes to assemble. High spec, with a 10-Year warranty. Available in curved & straight shapes with choice of midi height (1850mm) or regular height (2225mm).
More Info

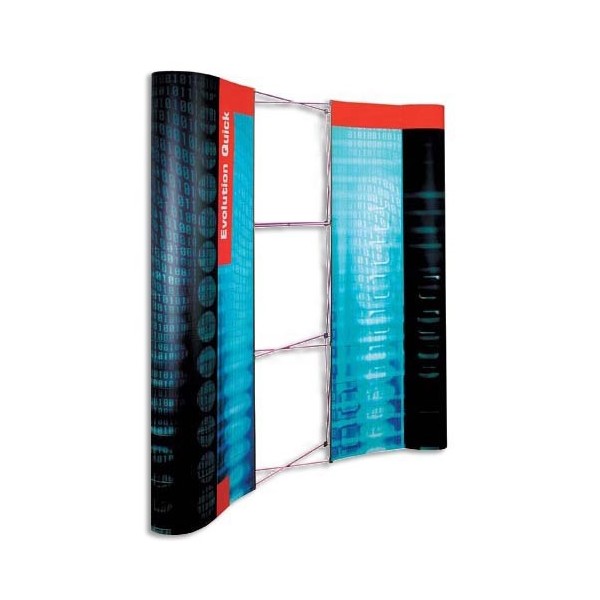

3x3 Pop Up Display - 5 panels in total (3 front panels and 2 D-end panels)
We like this system because the wide gauge tubing on the Quick Fix pop up stand has less flex than similar magnetically-locking systems from other manufacturers. This stability means that graphic panel fit is great and the framework itself very robust and hard wearing.

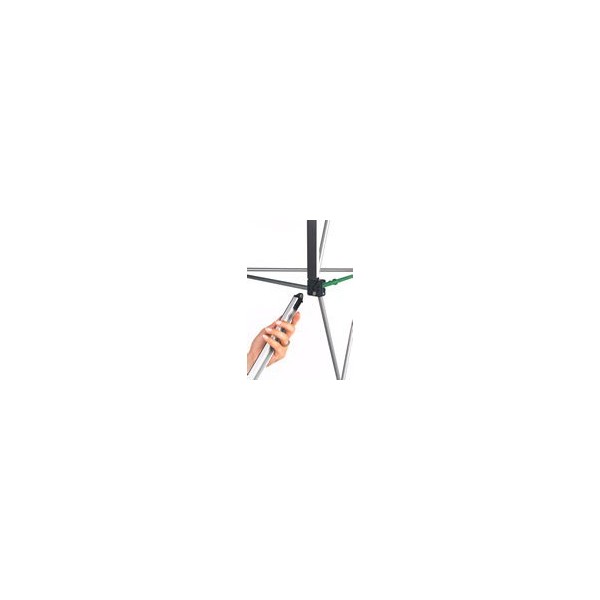

The quick fix Evolution pop up includes magnetic locking arms and aluminium magnetic fixing bars which shaves off several minutes from assembly time whilst increasing reliability through cutting down on the amount of clips/catches used.

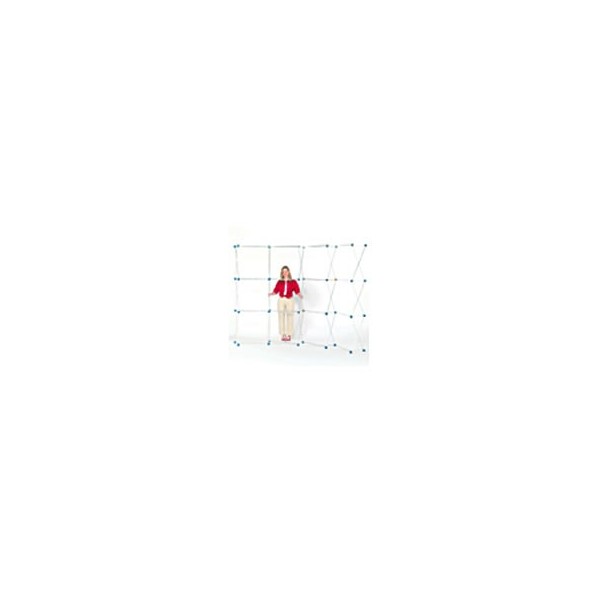

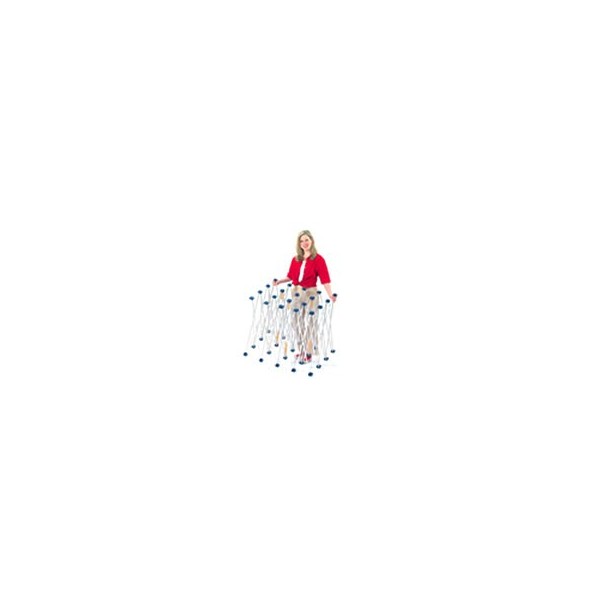

To assemble the pop up stand, simply 'pop up' the framework, connect the supplied magnetic bars to the tubing by offering them up to the frame and you are ready to start hanging on the panels. It's best to start at one end, working your way along the framework one panel at a time. The panels attach by hooking over small 'nodes' at the top of the frame and then magnetically adhering to the framework along each edge. For a complete beginner the assembly should be no more than 10 minutes (and a lot less after some practice).
The Evolution pop up can be supplied with either printed panels or loop nylon panels (fabric). If purchasing a stand with loop nylon panels you can fasten your own prints and posters to the 'skin' with hook type velco fasteners (see downloadable data sheet for the range of available fabric colours).
For printed stands, we will supply you with details of how to send your artwork after your order is completed. For fabric pop up stand orders, please specify the colour you require in the notes box provided when you place your order.
What's Included
- Frame - with 10 year manufacturers warranty
- Frame Bag
- Magnetic Channel Bars
- Set of panels for front and sides of frame (choose from printed or fabric panels)
Optional Case: £75 - Mini Elite Rigid carry case with wheels (stores pop up stand, graphics and accessories
Optional Upgrade: £125 - get all of the following items for only £125 plus vat when bought at the same time as the stand
Wrap-around print for wheeled case and folding table top (allows case to be transformed into a convenient table/counter).
Floodlight Kit (150 Watt halogen light with UK mains plug)
Product Features
- 10 year guarantee
- Robust Aluminium Frame
- Quick Fix magnetically attached aluminium fixing bars
- Compatible with a range of lights and accessories
- Standard frame height 2280mm tall (assembled size)
- Sets up in just minutes with no tools required
- Frames available in a variety of widths 2 height options
- Selection of pop up transit cases available to make transport and storage even easier
Assembled Dimensions
Please refer to the attachments section below for a diagram illustrating assembled product sizes.
Artwork Sizes - Artwork setup templates are available from the attachments section below.
Setup Sizes - Regular Height Stands
Regular Height Curved Stand: 3365mm wide x 2225mm tall (3 front panels at 673mm wide, 2 curved D-end panels at 673mm wide)
Regular Height Straight Stand: 3542mm wide x 2225mm tall (3 front panels at 732mm wide, 2 curved D-end panels at 673mm wide)
Setup Sizes - Midi Height Stands
Midi Height Curved Stand: 2990mm wide x 1850mm tall (3 front panels at 550mm wide, 2 curved D-end panels at 673mm wide)
Midi Height Straight Stand: 3161mm wide x 1850mm tall (3 front panels at 605mm wide, 2 curved D-end panels at 673mm wide)
Artwork Setup Info
Resolution - We suggest no less than 150dpi at full size. If you set artwork at a reduced scale, please increase resolution accordingly to allow for enlargement (for example at half size, double the resolution).
Colour Mode: Supply artwork in CMYK mode only
Bleeds: Please supply artwork as one spread, not individual pages. Please ensure you add 5mm of bleed around the whole document and include crop marks.
Important Info: The D-end panels on the pop up display are curved. They start at the front of the display and wrap-around to the back, thus forming half a cylindrical shape. Care should be taken not to position viewable information too far to the outside edges of these panels otherwise it will fall to the rear of the display. As a rule of thumb, the half-way point across the end panel represents the outside edge of the display. A useful artwork setup guide that explains clearly is available to download with our artwork templates.
Files types supported: Please save files as JPG, Tiff or PDF. We also accept most industry standard design software although any files supplied in such formats should be collected for output with all text converted to outlines before saving.
Artwork Setup Templates
Artwork design templates are available for this product in Illustrator and Quark formats. Please see the attachments section below. Should you require any help or advice on artwork setup or would like a quotation on design, please call and we are happy to help.
